• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1971 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 171751

• • Brand: Deutsche Philips-Ges.

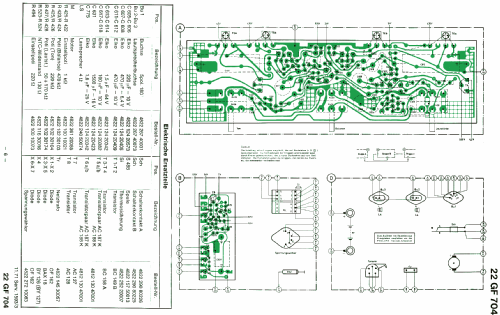

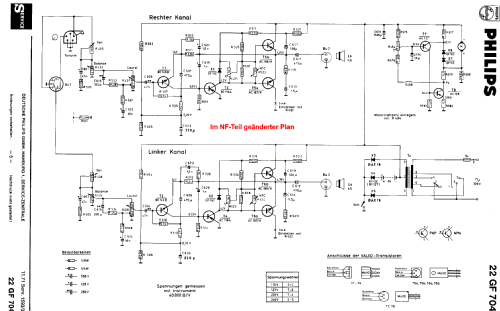

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BC149 BC158 AC187 AC188 BC149 BC158 AC187 AC188 AC127 AC128

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 22GF704 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 157 x 200 mm / 15.7 x 6.2 x 7.9 inch

• Notes
• Stereo-Plattenspieler 22GF704
  33 1/3; 45; 78 U/min
  2 Lautsprecherboxen 22RH400 im Lieferumfang enthalten.

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
