22GH919 (AG9019) /00 /16 /17 /19 /22 /29 /32

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 123351

• Picture

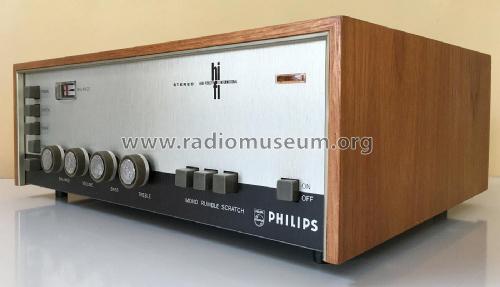

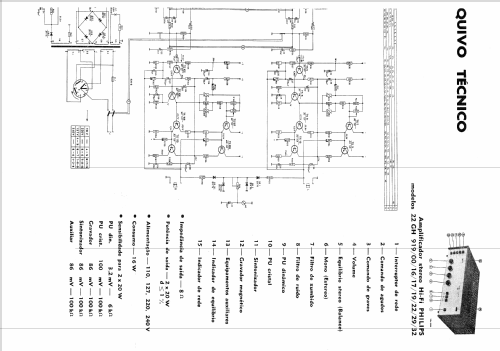

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors
• BC107 BC107 BC107 AC126 BC107 AF118 AC132 AC127 AD149 AD149 AC127 AC128 ASZ15 BC107 BC107 BC107 AC126 BC107 AF118 AC132 AC127 AD149 AD149

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22GH919 /00 /16 /17 /19 /22 /29 /32 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 371 x 123 x 260 mm / 14.6 x 4.8 x 10.2 inch

• Notes

• Stereo-Verstärker, Nennleistung 2x 20 Watt (Effektivwert) in 8 Ohm.

  Eingänge: Phono, Tuner, Band, Aux. Phono umschaltbar, Magnet/Kristall.



  Stereo amplifier, RMS power 2 x 20 Watt RMS in 8 Ohm.

  Inputs: Tape in/out; PU magn/xtal; Tuner; Aux.



• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

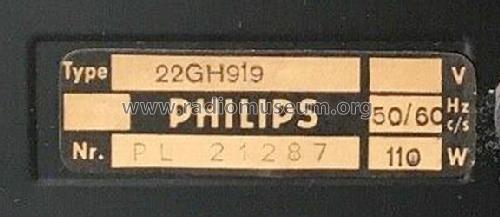

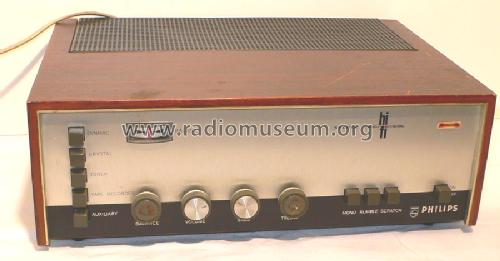

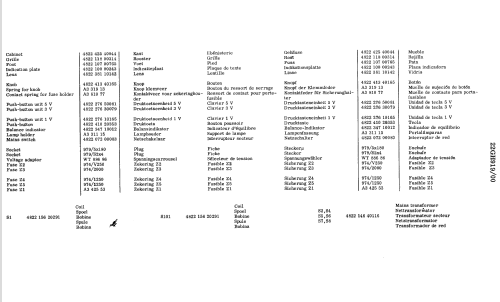

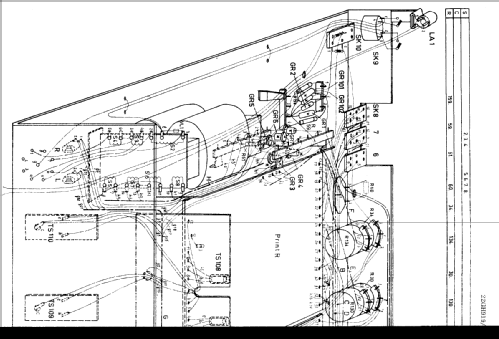

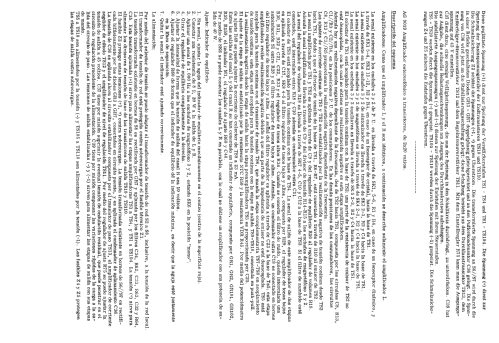

• Literature/Schematics (1)
• -- Original-techn. papers.
