• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86594

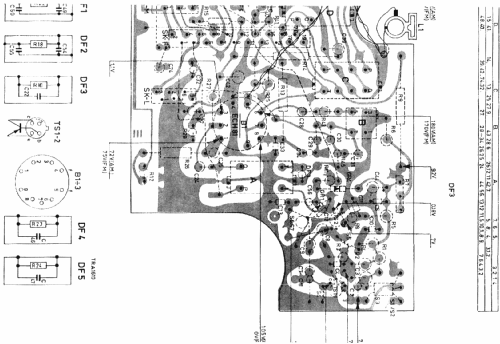

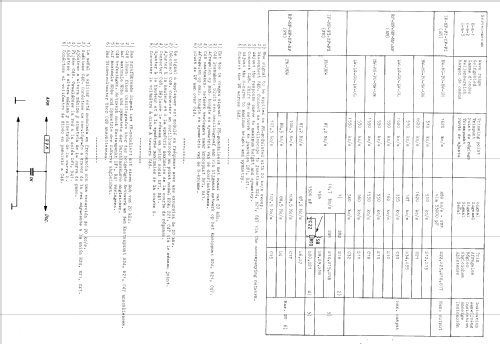

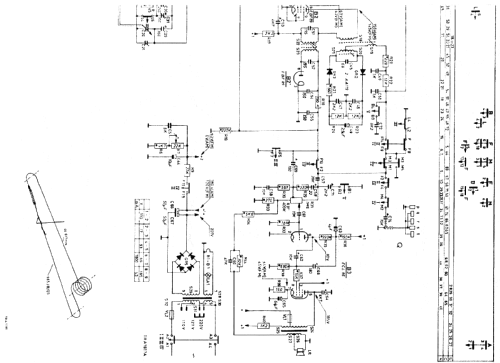

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 22RB261 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 380 x 170 x 160 mm / 15 x 6.7 x 6.3 inch

• Notes
• Transistoren im FM-Tuner. Rectifier: B250/C100. Dial lamp: 8024D/71 (7V/0,3A).

• Net weight (2.2 lb = 1 kg)
• 3.1 kg / 6 lb 13.3 oz (6.828 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
