• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165894

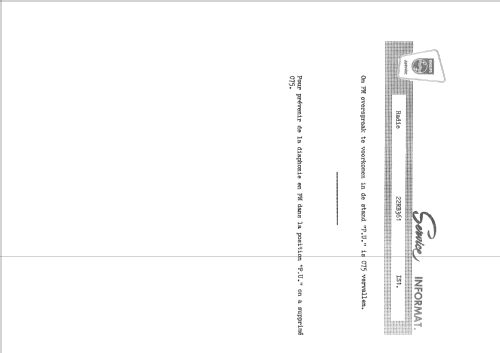

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF89 ECL86 EM87

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22RB361 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 447 x 200 x 159 mm / 17.6 x 7.9 x 6.3 inch

• Notes
• Transistoren in FM-Tuner. Rectifier: B250/C100td. Dial lamp: 8024D/71 (7V/0,3A). Diodes: OA90; BA102; 2x AA119.

• Author
• Model page created by Maurice Hamm. See "Data change" for further contributors.

• Other Models

• Here you find 5242 models, 4383 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
