• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 321933

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF85 ECL86 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1.8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

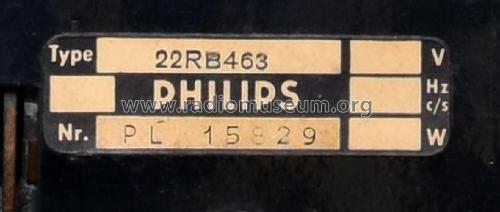

• Model: 22RB463 - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 183 x 201 mm / 24.4 x 7.2 x 7.9 inch

• Mentioned in

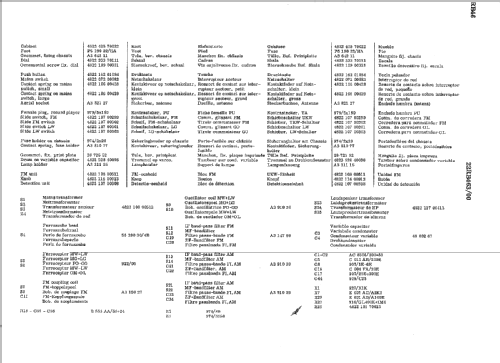

• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.

• Other Models

• Here you find 593 models, 569 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
