• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 207401

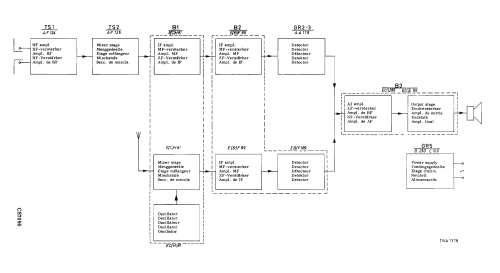

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECH81 EBF89 ECL86

• Number of Transistors
• 2

• Semiconductors
• AF124 AF125

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22RH370 /19 - Philips Belgium Belgien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 470 x 240 x 260 mm / 18.5 x 9.4 x 10.2 inch

• Notes

• Recordplayer 22GC035.
  Transistorized FM Tuner.

  FM bis 108 MHz

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Verhoeven Ludo. See "Data change" for further contributors.
