22RH497 /00Z
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1969–1971
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 184379
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Power out
- 30 W (40 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 22RH497 /00Z - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 410 x 540 x 225 mm / 16.1 x 21.3 x 8.9 inch
- Notes
-
Philips HiFi-Lautsprecherbox 22RH497
Dreiwegsystem, geschlossen, mit 3 Lautsprechern,

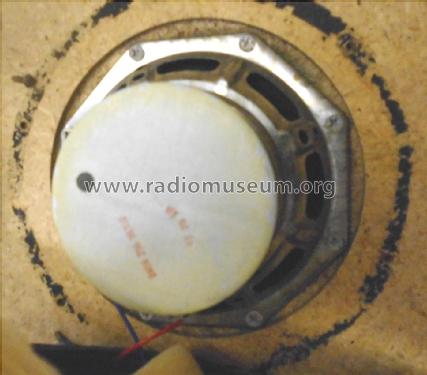

- Tieftöner 250 mm (Philips AD 1055/W8)
- Mitteltöner 130 mm (Philips AD5060/W8)
- Kalottenhochtöner 25 mm (Philips AD 0160/T8)
Nennbelastbarkeit 30 W, Musikbelstbarkeit, anfänglich 40 Watt, später 60 Watt angegeben, Übertragungsbereich 30 - 20.000 Hz nach DIN 45500, Trennfrequenz der Weiche 700 / 3.000 Hz, 8 Ω, Gehäusevolumen, netto ca 35 l, feste Frontbespannung Stoff - dunkelbraun, Anschlußkabel 10m mit DIN Stecker
Gehäusefarbe Nußbaum natur
- Net weight (2.2 lb = 1 kg)
- 13.4 kg / 29 lb 8.2 oz (29.515 lb)
- Mentioned in
- -- Original prospect or advert (Philips HiFi-Stereo 1969 und 1971)
- Author
- Model page created by Michael Kolb. See "Data change" for further contributors.
