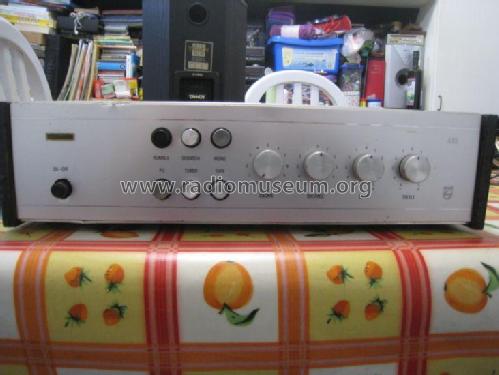

22RH590 /00T /00Z /15T /16Z /22Z /33T /43T

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1969–1974 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 122702

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors
• BC149 BC148 AC126 BC147 BC177 AC132 AC127 AD149 BY126 BA148

• Main principle
• Audio-Amplification; 8 AF stage(s)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22RH590 /00T /00Z /15T /16Z /22Z /33T /43T - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 100 x 250 mm / 14.2 x 3.9 x 9.8 inch

• Notes

• 2x 10 Watt stereo amplifier

  Transistors and diodes listed once per type.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 449.00 Hfl
