22RH720
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1972 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79732
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org

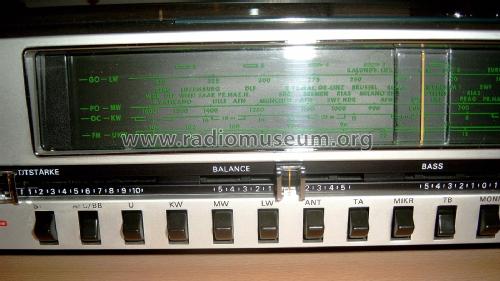

- Model: 22RH720 - Philips Belgium Belgien
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 540 x 117 x 280 mm / 21.3 x 4.6 x 11 inch
- Notes
- HiFi tuner-amplifier:
LW 150-350 kHz(2000-857m),
MW 520-1605 kHz(577-187m),
SW 5.95-17.9 MHz (40.4-16.7m),
FM 87.5-104 MHz,
DIN plugs for Turntable (MD*Ceramic)Recorder, Monitor, Mic,2 x 2 DIN
Loudspeaker plugs (4-8 Ohm) Headphone (8-600 Ohm).
2 IC, 75 Transistors, 42 Diodes and 9 Thyristors - Power 60-160 W
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funk-Technik (FT) (7/1973, S. 234 - 236 / Beschreibung, Teilschema)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
