• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967/1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 99883

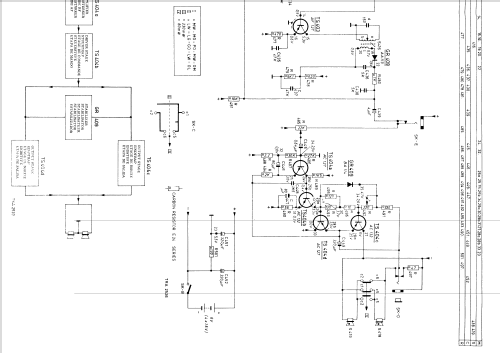

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF126 AF127 AF127 AC127 AC132 AC127 AC132 AA119 BA114

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 6 cm = 2.4 inch

• Power out
• 0.23 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

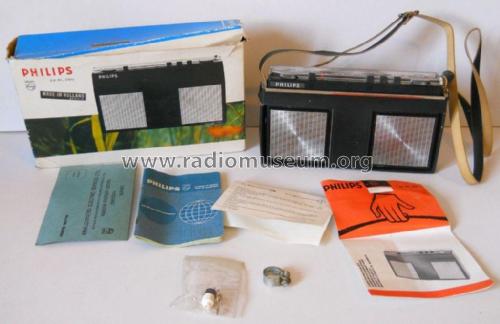

• Model: 22RL280 /00R /11F /11R /11X - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 205 x 118.5 x 27 mm / 8.1 x 4.7 x 1.1 inch

• Notes
• • 3 cabinet colors: black, green or blue.
  • AM radio with built-in ferroceptor:
    • LW: 150 - 260 kHz.
    • BC: 525 - 1605 kHz.
  • Amplifier: 1 x 230 mW in 2 loudspeakers, coupled in parallel, or 80 mW when coupled in series with economy switch.
  • Separate amplifier input for babyphone.
  • Output for earphone.
  • Battery economy switch.



• Price in first year of sale
• 109.00 NLG

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 5270 models, 4414 with images and 3457 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
