• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80411

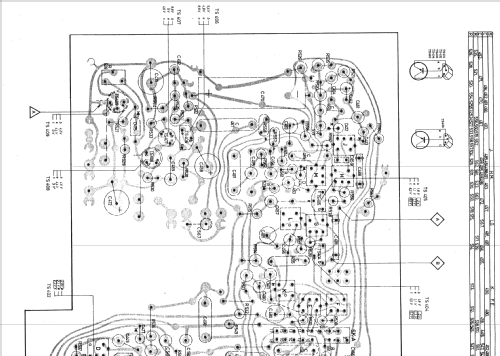

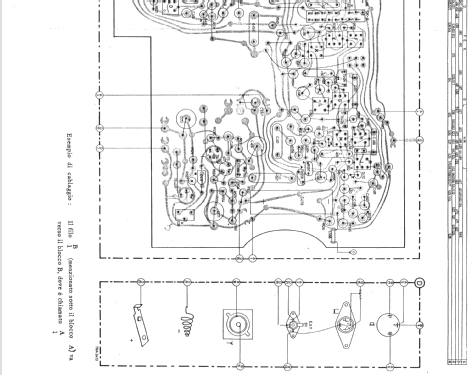

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF194 BF195 BF195 BF195 BF194 BC148 or. BC149 AC188 or. AC128 AC187 AC188 AA119 BA114 BA102

• Main principle
• Superheterodyne (common); ZF/IF 452-468/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 22RL383 /00R /22R /33R - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 168 x 86 mm / 11.4 x 6.6 x 3.4 inch

• Notes

• Wave bands:

  • LW: 150 - 260 kHz
  • MW: 520 - 1620 kHz
  • FM: 87,5 - 104 MHz

  IF for version /00 = 452 kHz
  IF for version /22 = 460 kHz
  IF for version /33 = 468 kHz

  Version /33 is equipped with BC149 instead of BC148, and AC128 instead of AC188.

  Diodes: 5x AA119, 1x BA114, 1x BA102.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
