22RL573 /01

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 187876

• Picture

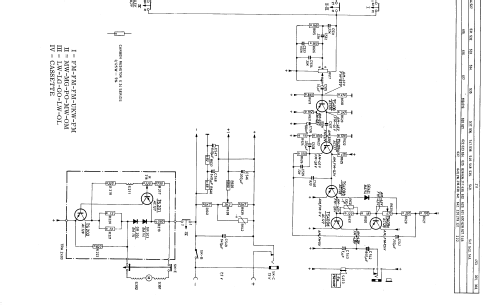

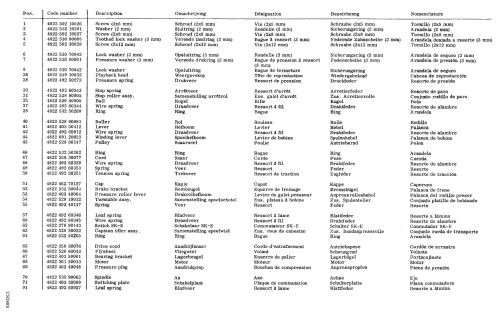

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• AF124 AF125 AF126 AF126 AF126 BC109 AC126 AC126 AC127 AC128 AC128 AC127 AC127 AC128

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.75 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 22RL573 /01 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 267 x 170 x 77 mm / 10.5 x 6.7 x 3 inch

• Notes
• • AM radio with built-in ferroceptor:
    • LW: 150 - 260 kHz.
    • BC: 525 - 1605 kHz.
  • FM radio with telescopic antenna: 87.5 - 108 MHz.
  • Amplifier: 1 x 750 mW in 8 Ohm.
  • Cassette: only playback.
  • External power supply socket.
  • Contains diodes: 5 x AA119, 1 x BA102, 3 x BA114.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
