• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 248023

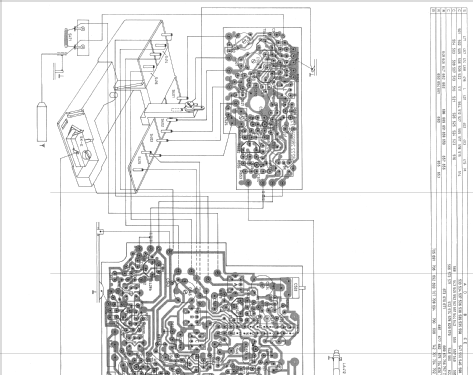

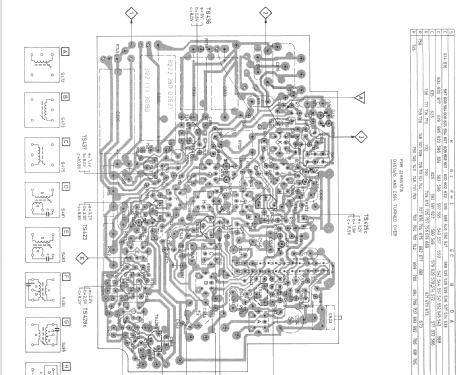

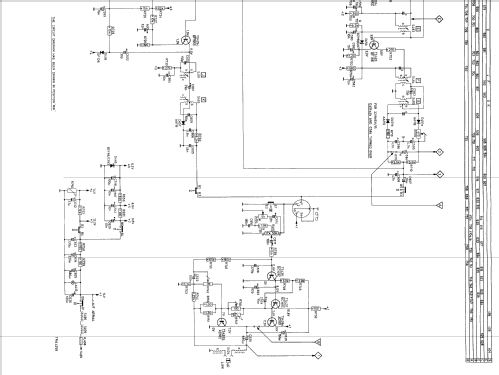

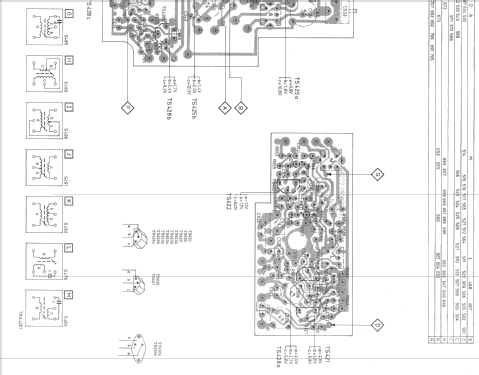

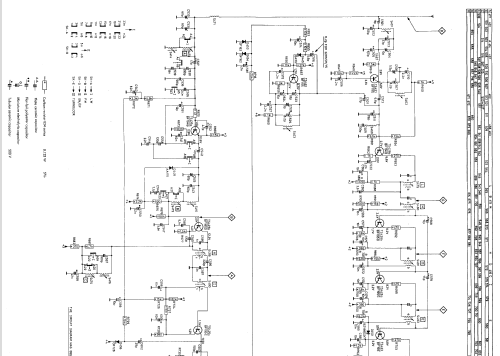

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• BF195 BF196 BC149 BC148 AD161 AD162

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

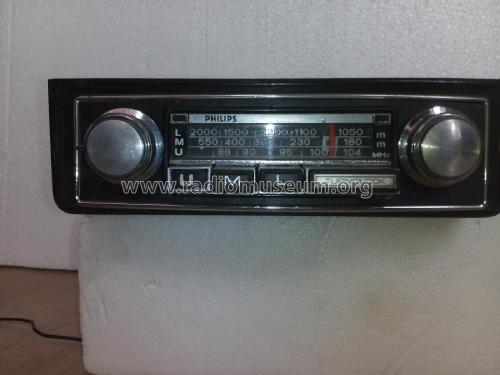

• Model: 22RN511 /00 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 41 x 100 mm / 7 x 1.6 x 3.9 inch

• Notes

• Wave range:
  LW: 148,5 - 293 kHz.
  MW: 515 - 1622 kHz.
  FM:  87 - 104 MHz.
  One semiconductor per type listed.



• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
