23CT6/123
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1961/1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 238118

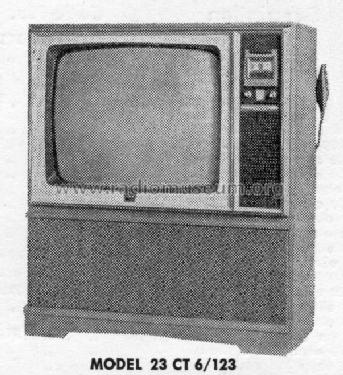

Service manual cover.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6ES8 6BL8 6BY7 6EJ7 6EJ7 6DX8 6BL8 6BL8 6BM8 6BL8 6CS6 6BM8 6BX6 6CM5 6AL3 1S2 AW59-90 or AW59-30
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000 & 30500 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200; 220; 240; 255 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23CT6/123 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 30.25 x 34 x 15.25 inch / 768 x 864 x 387 mm
- Notes
-
Philips Model 123 "Console De-Luxe"
A 23" remote controlled de-luxe console TV receiver having 16 valves, eight germanium and two silicon diodes, four voltage-dependent and one light-dependent resistors. Cabinet on castors, finished in maple, walnut or rosewood.
Features: aerial input 300 ohms. Built-in aerial pad with optional connections. Power tuned turret tuner for 13 channels with channel preselection and remote control. Three stage vision IF with frame-grid valves; two stage sound IF with ratio detector. DC coupling to picture tube. Noise gated and delayed AGC. Noise detector and frequency controlled noise gate. Automatic "magic eye" brightness/contrast control by light- dependent resistor. "Halo-light" rear cabinet illumination. Stabilised vertical, horizontal and EHT circuits. Curved safety/filter screen. Horizontal tilt-out chassis for easy servicing. Speakers: one 8" and 6" front mounted.
Controls: push-button on/off, channel selector bar, contrast, volume, brightness, tone. Illuminated channel indicator. Rear pre-set: fine tuning, channel preselection, manual tone, horizontal hold, vertical hold, halo-light on/off. Remote control unit for channel, volume, picture, with 25 ft of kinkless cable. (FROM MINGAY'S PRICE SERVICE)
- Net weight (2.2 lb = 1 kg)
- 130 lb (130 lb 0 oz) / 59.020 kg
- Price in first year of sale
- 219.45 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1961 & Feb 1962.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Data , June 1961.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page P16.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
