- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 317685

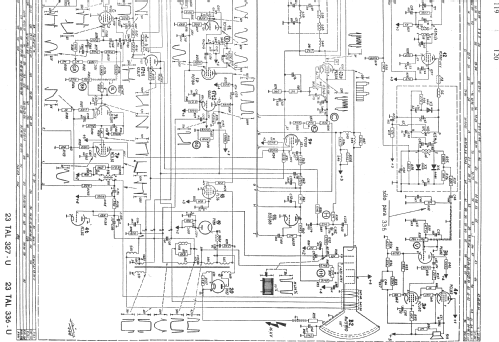

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- PCF80 PCL82 PCL82 PCF80 PCC189 PCL82 PF86 PCF80 PCL84 ECH81 PCF80 PCF80 EF184 EF184 EF183 12AU7 PL36 PY88 DY87 PCF80 A59-15W
- Main principle
- Superheterodyne (common); ZF/IF 45750 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 23TAL336U - Philips Argentina, FAPESA,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 600 x 540 x 430 mm / 23.6 x 21.3 x 16.9 inch
- Notes
-
Philips Argentina - FAPESA 23TAL336U
TV B/N Canales VHF 2 a 13 - CRT 23" 110 grados
Similar al 23TAL327U y al Franklin 23TRF6052U
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Televisión Circuitos - Argentina -1966)
- Author
- Model page created by Rodolfo Gaston Wenceslao Nasasta. See "Data change" for further contributors.
