- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1940/1941
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 26880

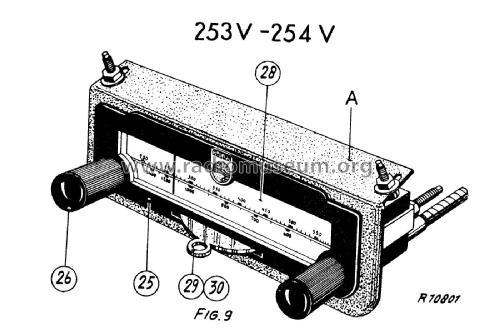

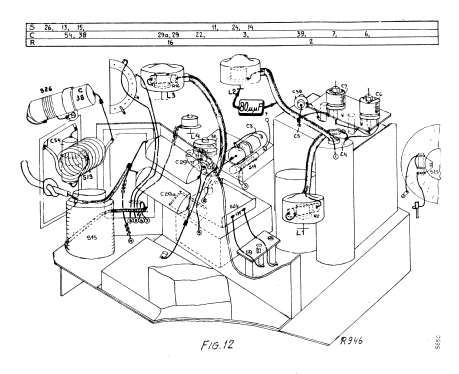

Bild aus dem Service Manual
Bild aus dem Service Manual
Bild aus dem Service Manual

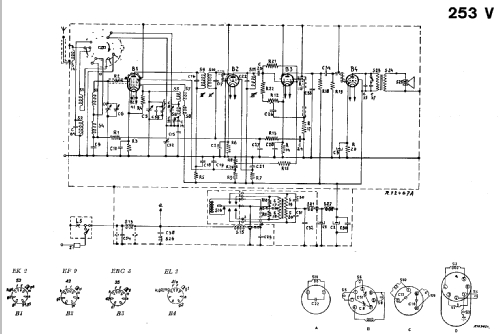

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 253V [var. 1] - Philips; Eindhoven tubes
- Dimensions (WHD)
- 185 x 245 x 190 mm / 7.3 x 9.6 x 7.5 inch
- Notes
- Vibrator 7866.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 165.00 Hfl
- Source of data
- -- Original-techn. papers.
- Mentioned in
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
