253V
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13363

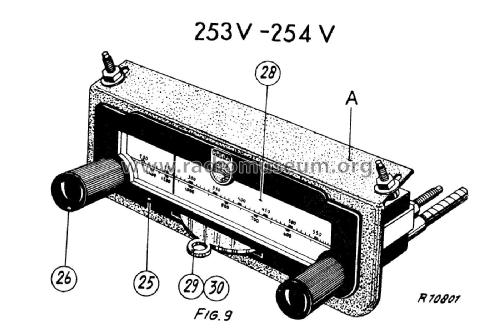

Bild aus dem Philips Service Manual
Bild aus dem Philips Service Manual
Bild aus dem Service Manual
Bild aus dem Service Manual
Ansicht Set von der Seite
Schrägansicht rechts
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 253V - Philips - Schweiz
- Notes
- Autoradio
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Die Tungsram-Tabellen führen das Modell auf.
