• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1945 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 135809

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 4654 4654 AX50

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 25 W (unknown quality)

• from Radiomuseum.org

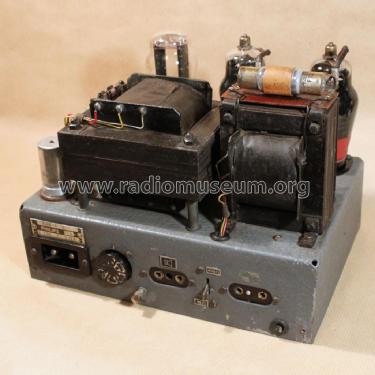

• Model: 2724A - Philips akc. spol., Praha-

• Shape
• Tablemodel, with any shape - general.

• Notes
• Leistungsendstufe, Ausgang 100 V/400 Ω oder 22,5 V/20 Ω.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
