• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337983

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AT6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 273 - Philips Canada

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

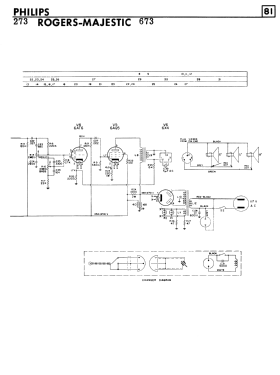

• The Philips model 273 is a 6-tube console radio with built in record changer. Has one 8 inch woofer and two 5 inch tweeters. Same schematic as the Rogers-Majestic model 673.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1958 supplement 43)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.

• Other Models

• Here you find 163 models, 91 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
