• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1946 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 135873

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF6 EF6 4654 4654 AX1 4542

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• from Radiomuseum.org

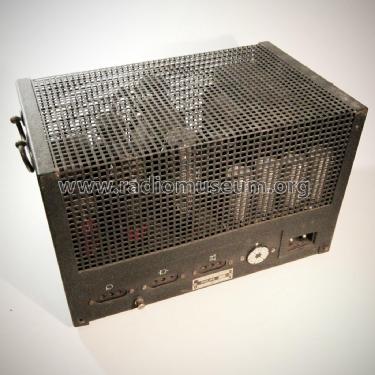

• Model: 2821B-14 - Philips akc. spol., Praha-

• Shape
• Chassis only or for «building in»

• Notes
• Verstärker 2821 B/14, Eingänge für pick-up und Mikrofon, verschiedene Ausgänge für Lautsprecher.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
