291A

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80247

Click on the schematic thumbnail to request the schematic as a free document.

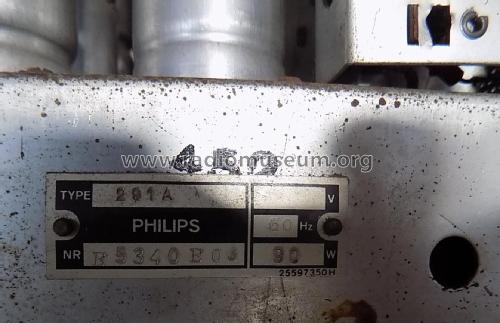

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 452 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 /245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 291A - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 630 x 440 x 300 mm / 24.8 x 17.3 x 11.8 inch
  • Notes
  • Optical tuning indication, automatic volume control, band-spread operations in each of three SW bands 30-52m; 18-30m; and 11-18m. Wavetrap for suppressing troublesome I.F. signals; and Performance selection by means of L.F. inverse feed-back.
  • Net weight (2.2 lb = 1 kg)
  • 25.6 kg / 56 lb 6.2 oz (56.388 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips; Eindhoven: 291A

Threads: 2 | Posts: 14

Hola amigos:

                  Tengo un receptor Philips 291A pero lamentablemente debo cambiaar el capacitor variable y es de un tipo especial, como si fuesen trimeers de aire concentricos gigantes, por ejemplificarlo de alguna manera. Por tal motivo es imposible reemplazarlo por un capacitor variable estandar.. Si alguien sabe donde se podria conseguir un capacitor de ese tipo (triple de 500 pf por seccion) les ruego me escriban..

                  Es un excelente receptor y no me gustaria tener que hacer "injertos".-

Gracias

Heriberto

Heriberto Tavella, 28.Jun.14

Weitere Posts (6) zu diesem Thema.

Dear Members,

I purchased a Philips 291A export model in 2005 and someone removed the variable capacitor.

It is a very special sealed three gang cap. 12 to 500 uuF X 3

According the original Philips Service Documentation the part number is 49 000 05.0

During the last two years I have searched by this scarce part to restore my model.

I will be very thanked for some help.

Thanks in advance, Bruno.






Bruno Gandolfo-Canepa, 19.Apr.07

Weitere Posts (8) zu diesem Thema.
