• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1950

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 91439

Click on the schematic thumbnail to request the schematic as a free document.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

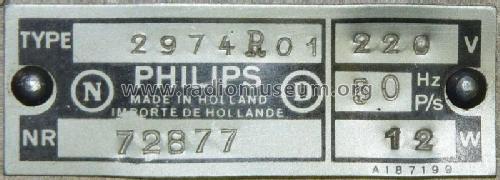

• Model: 2974/R01 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 365 x 205 x 320 mm / 14.4 x 8.1 x 12.6 inch

• Notes

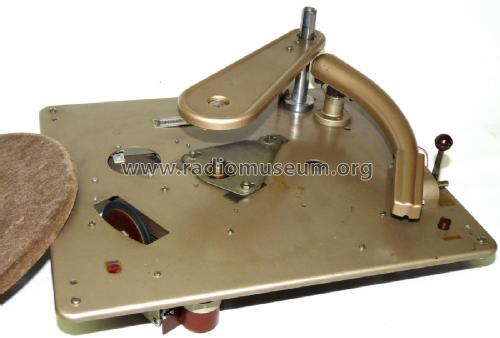

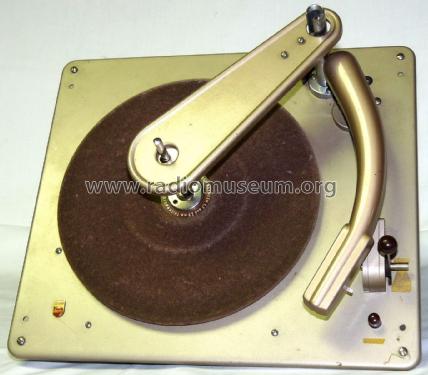

• Plattenwechsler, Geschwindigkeit 78 rpm, für bis zu 10 Schallplatten, gemischt 25 und 30 cm Durchmesser. Kristalltonabnehmer, vertikaler Nadeldruck (Auflagekraft) 25 g.

  Höhe über Montageplatte 13,5 cm, Tiefe unter Montageplatte 7 cm.

• Net weight (2.2 lb = 1 kg)
• 4.3 kg / 9 lb 7.5 oz (9.471 lb)

• Price in first year of sale
• 1,540.00 ATS

• Source of data

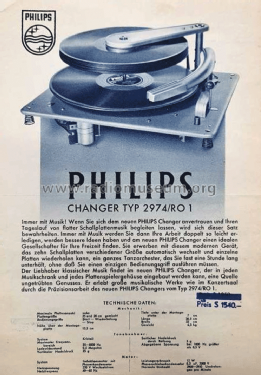

• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
