• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1949 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 176146

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-127 or 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Plattenspieler 2977 /00 /01 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Notes

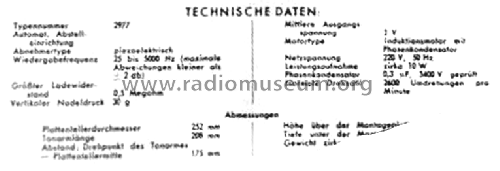

• Philips Plattenspieler 2977, Geschwindigkeit 78 rpm, Plattenteller-Ø 252 mm, Tonarm aus Thermoplast, vertikaler Nadeldruck (Auflagekraft) 30 g.

  2 Ausführungen, jeweils auf die andere Version umlötbar:

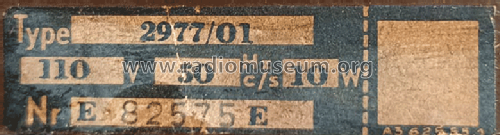

  • 2977 /00 für 220 V
  • 2977 /01 für 110 V

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)

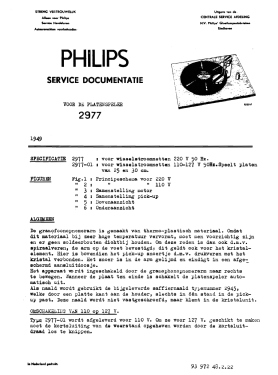

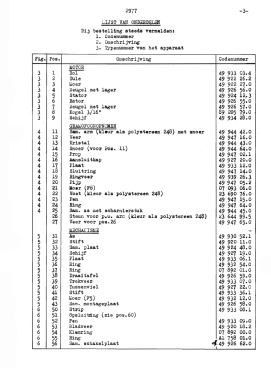

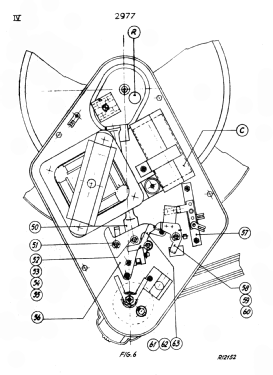

• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
