• Country
• Malaysia

• Manufacturer / Brand
• Philips Malaysia; Petaling Jaya

• Year
• 1981 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 220911

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 1502B 1502C TEA5570 LA4510 BA317 BA317 1K60 1K60 1K60

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.6 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

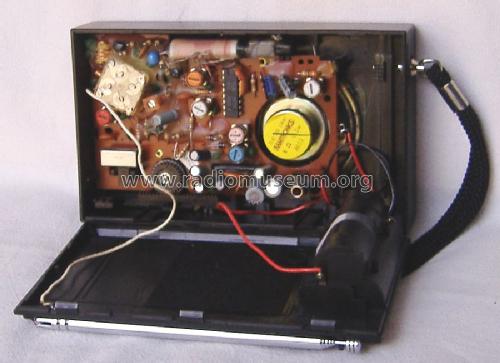

• Model: 2-Band Receiver D1400 /30R /32R - Philips Malaysia; Petaling

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 145 x 85 x 40 mm / 5.7 x 3.3 x 1.6 inch

• Net weight (2.2 lb = 1 kg)
• 0.240 kg / 0 lb 8.5 oz (0.529 lb)

• Price in first year of sale
• 1,800.00 pte

• Author
• Model page created by José Manuel Silvestre. See "Data change" for further contributors.
