308A
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1943–1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150757
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 308A - Philips - Schweiz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 285 x 180 mm / 16.5 x 11.2 x 7.1 inch
- Notes
-
Gleich wie 308A-2 aber MW -LW. KW.
Fehlt uns hier noch korrespondierendes Mediator-Modell M84A? Im Radiokatalog Band 2 ist M84A jedenfalls nicht enthalten. Dort sind nur M84A-2 und M84A-3 gelistet.
Wer weiss evtl. mehr?

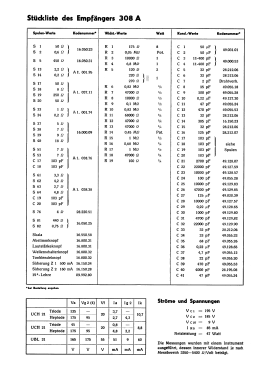

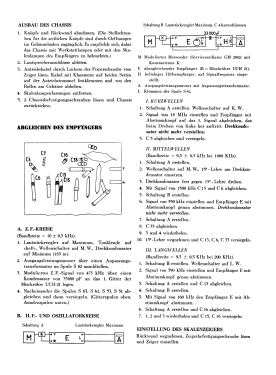

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
