• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118291

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF5 AH1 EF6 EF5 EF5 EBC3 EL3 EZ3

• Main principle
• Superhet with RF-stage; ZF/IF 475 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / 110-245 / ? Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

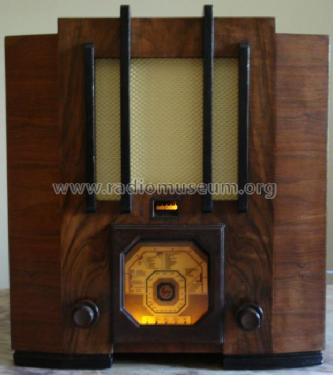

• Model: 339A - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 435 x 490 x 330 mm / 17.1 x 19.3 x 13 inch

• Notes
• This model employs a galvanometer as a tunning meter. There are three IF transformers and it has a DC/AC converter unit to use with a battery.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Meyer Rochwerger. See "Data change" for further contributors.
