• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1955/1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 205173

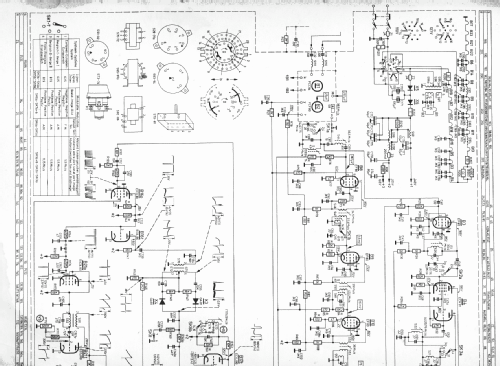

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 EF80 EF80 ECH81 EF80 EF80 EF80 PABC80 PL82 PL83 EF80 ECC82 ECL80 ECL80 ECL80 PL81 PL82 PY81 DY86 MW43-43

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 43T101A-20 - Siera; Belgien

• Shape
• Tablemodel, with any shape - general.

• Notes
• VHF only.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)

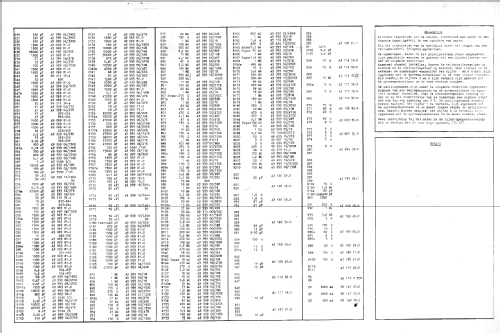

• Service Manual

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
