• Country
• Hungary

• Manufacturer / Brand
• Philips Hungary, Rádió és Villamossági Rt., Magyar Philips; Budapest

• Year
• 1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97979

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 ECH4 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org

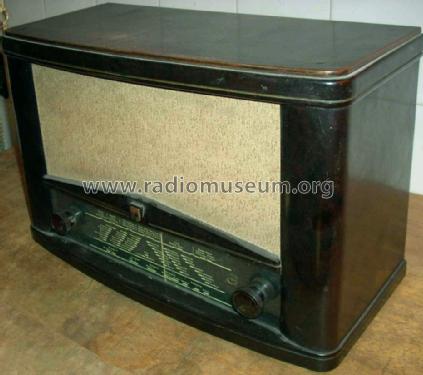

• Model: 450A - Philips Hungary, Rádió és

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 300 x 170 mm / 15.7 x 11.8 x 6.7 inch

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 265.00 pengö

• Mentioned in
• Rádiókészülékek Kapcsolásai 1936-56

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
