456AT mit NF-Telefonrundspruch

• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180457

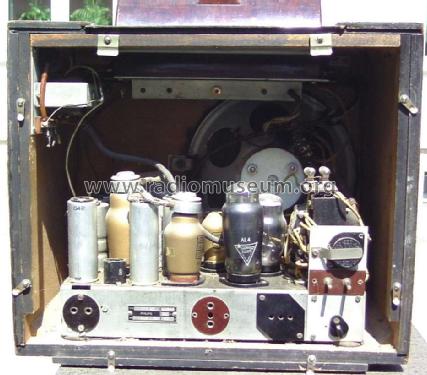

• Picture

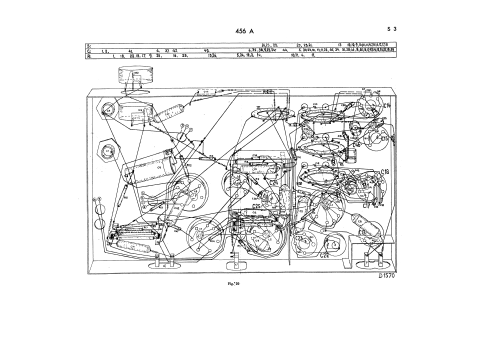

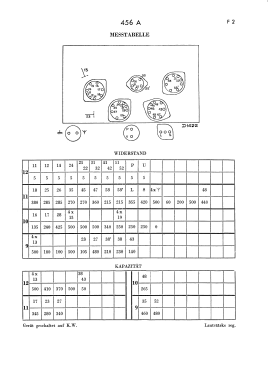

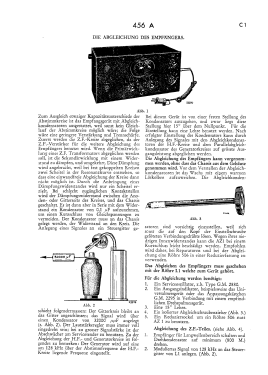

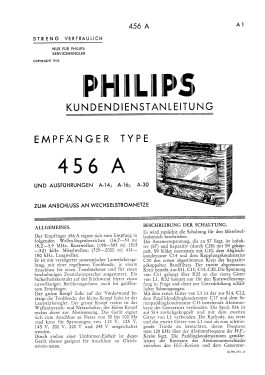

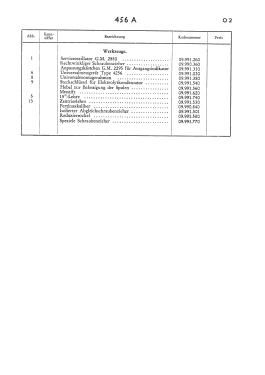

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 AB2 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Wired Wireless Receiver(AF only)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 456AT [mit NF-Telefonrundspruch] - Philips - Schweiz

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 345 x 290 mm / 15.7 x 13.6 x 11.4 inch

• Notes
• Klappskala. 2 Sicherungen.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
