• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 136950

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 AB2 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-240 V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

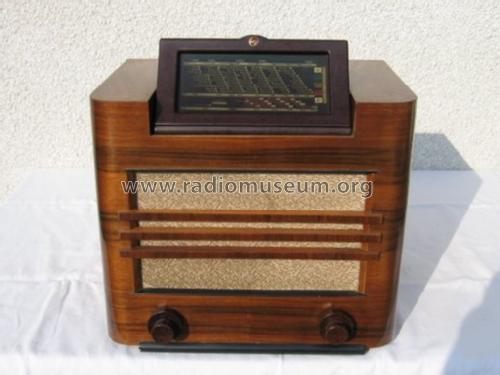

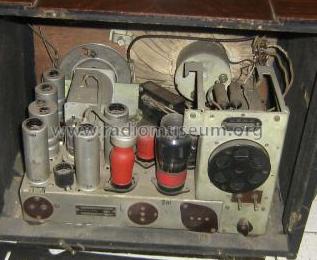

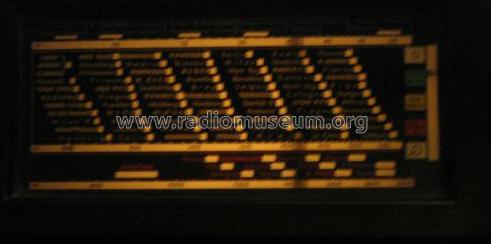

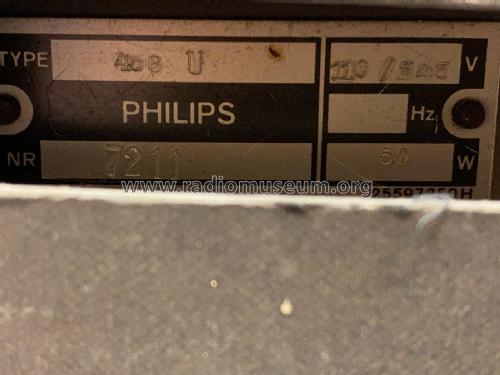

• Model: 456U - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 340 x 270 mm / 15.7 x 13.4 x 10.6 inch

• Notes

• Entspricht Modell 456A, jedoch ab Werk ausgestattet mit einem angepassten Netztransformator und Wechselrichter 7926.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 2544 models, 2256 with images and 1564 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
