• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1954 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300144

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 1.5 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

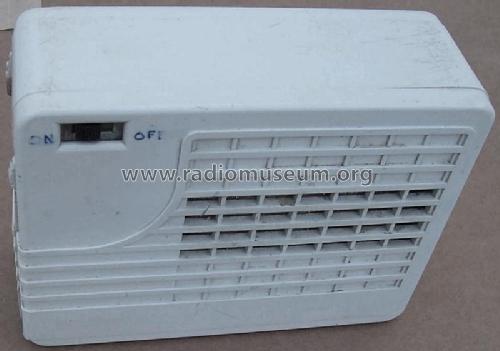

• Model: 461 - Philips Canada

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 160 x 120 x 60 mm / 6.3 x 4.7 x 2.4 inch

• Author
• Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.

• Other Models

• Here you find 162 models, 90 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
