- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283252

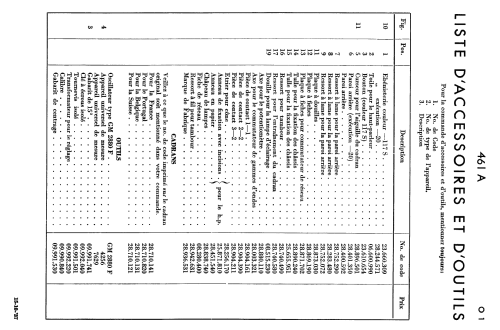

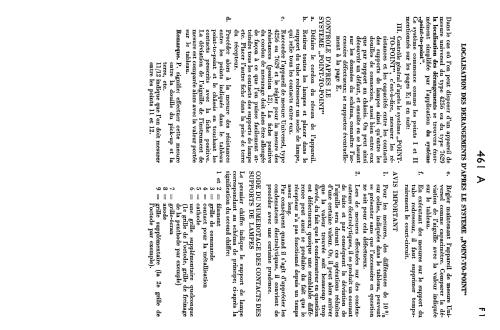

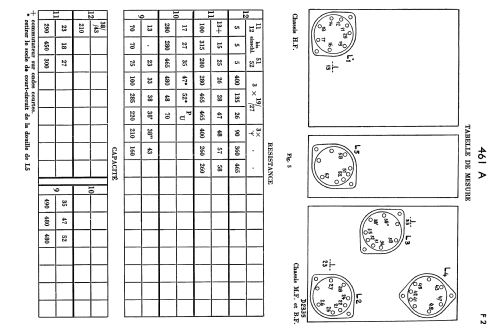

Bild aus Servicedoku.

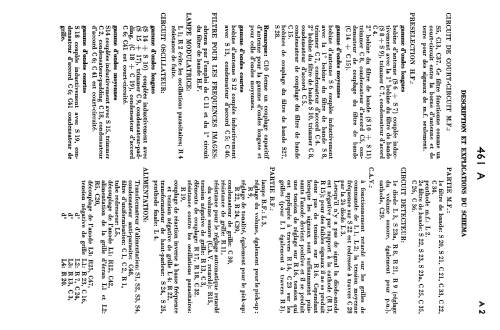

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 461A -20 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 505 x 325 x 180 mm / 19.9 x 12.8 x 7.1 inch
- Notes
-
3 wave bands: SW from 16.7 to 51 m, MW from 198 to 585 m, and LW from 720 à 2000 m.
- Net weight (2.2 lb = 1 kg)
- 9.850 kg / 21 lb 11.1 oz (21.696 lb)
- Mentioned in
- -- Original-techn. papers.
- Other Models
-
Here you find 5270 models, 4414 with images and 3457 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
