• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26897

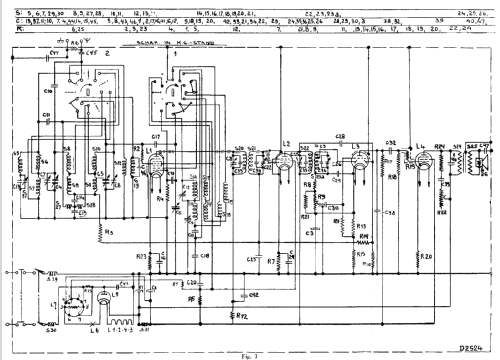

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• CK1 CF3 CBC1 CL4 CY1 C8 or C9

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130; 200-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

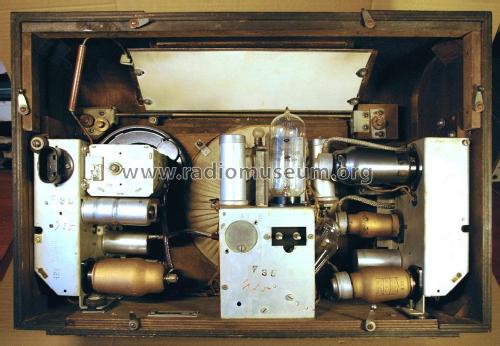

• Model: 461U [Holz] - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 505 x 325 x 180 mm / 19.9 x 12.8 x 7.1 inch

• Notes
• 3 Band reception:
  • LW: 720 - 2000 m.
  • BC: 198 - 585 m.
  • SW: 16,7 - 51 m.
  Tuning scale light bulbs type: 8080-07 (10V, 200mA).

  The selection of the mains voltage is done by exchanging the current regulator tube:

  • Type C9 for 110-130 Volt
  • Type C8 for 200-220 Volt
  Loudspeaker Philips type 9656. No connectors for external loudspeaker or for pick-up.

  Variant -20 is for the Belgian market.
  Variant -32 has a intermediate frequency of 118 kHz.

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
