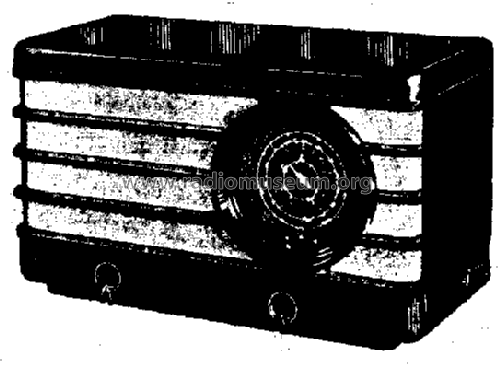

470U

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26900

• Picture

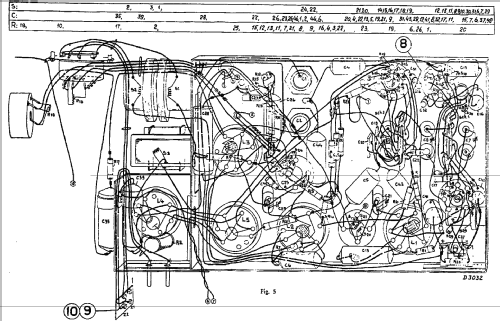

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF9 CBL1 CY1 C1 or C9

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-225 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 470U - Philips; Eindhoven tubes

• Dimensions (WHD)
• 510 x 290 x 235 mm / 20.1 x 11.4 x 9.3 inch

• Notes

• C1 (200-225V) o. C9 (110-130V)

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

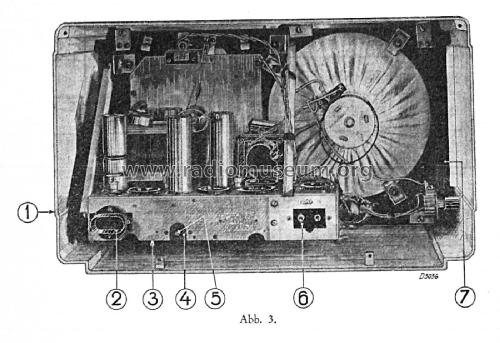

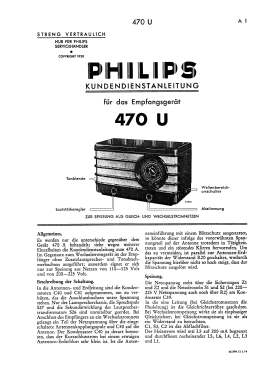

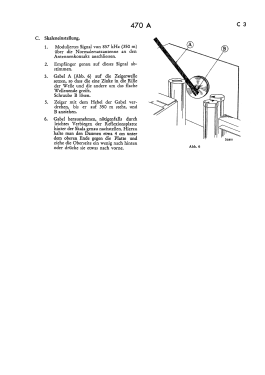

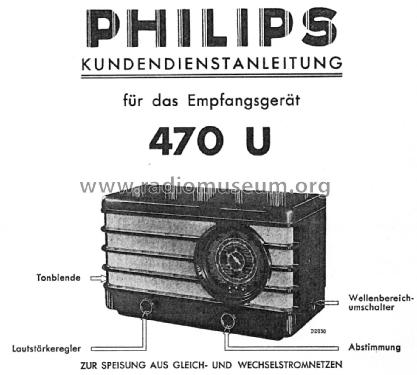

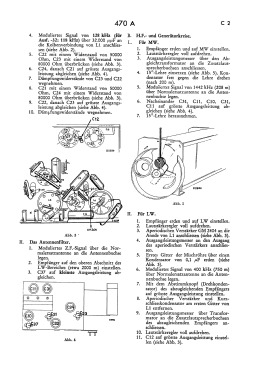

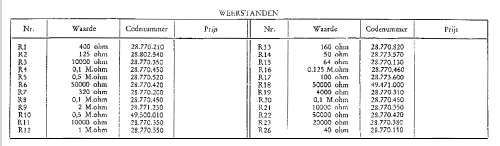

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
