• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 276202

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 EBC3 CL4 CY1

• Main principle
• Superheterodyne (common); ZF/IF 454 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org

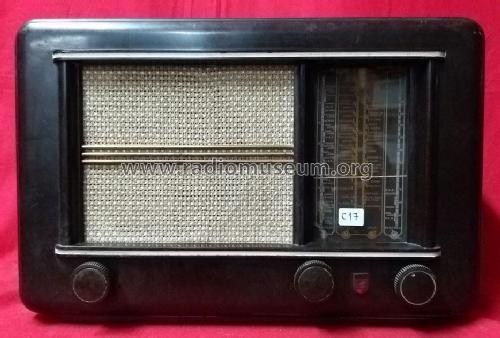

• Model: 493A - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 230 x 170 mm / 13.8 x 9.1 x 6.7 inch

• Notes
• 3 Band reception:
  • BC: 160 - 570 m.
  • SW1: 13,5 - 45 m.
  • SW2: 45 - 160 m.
  Tuning scale light bulbs type: 8092D (10V, 200mA).
  Loudspeaker Philips type 9648-06 or 9676. No connectors for external loudspeaker or pick-up.
  There is also a variant 493A-06 with different wavelengths.

  Attention: The mains is connected to the chassis.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)
