• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1981–1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188941

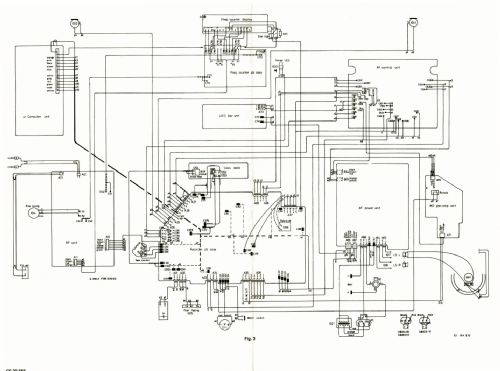

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / AC 110-127; 220 / DC 9-14 / D: 8 ×1,5 & for battery back-up AA: 2 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4-Band Radio Cassette Recorder D8814 /00 /05 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 540 x 300 x 160 mm / 21.3 x 11.8 x 6.3 inch

• Notes
• Philips D8814 4-Band AM-FM-Stereo Radio Cassette Recorder;
  Spatial Stereo 4-Cone Speaker System, 7" woofer, 2" tweeter;
  Frequency Response: 50-15000 Hz (METAL)
  50-14000 Hz (CrO2 tape)
  50-12000 Hz (normal tape)
  S/N ratio: 50dB w/ Dolby B system
  Wow & flutter: 0.13% WRMS
  Output: 2x 10 W Music power
  Digital displays for radio frequency, clock/alarm and tape/ACS counter
  Weight of this Ghetto Blaster / Boombox included batteries.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
