• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7339

• • Brand: Deutsche Philips-Ges.

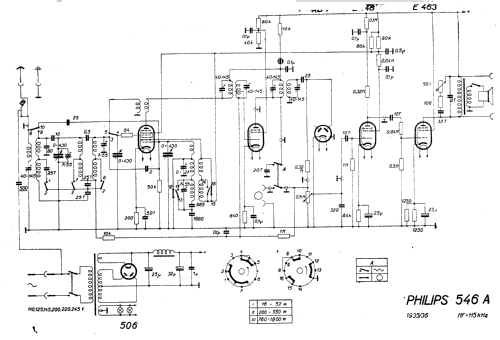

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AK1 AF2 AB1 RENS1284 RENS1384 RGN1064

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC)

• from Radiomuseum.org

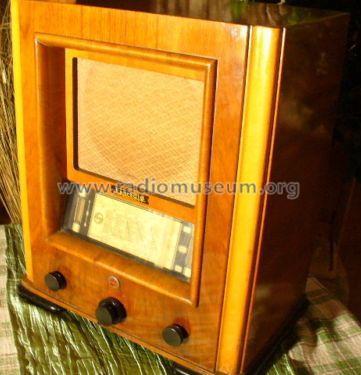

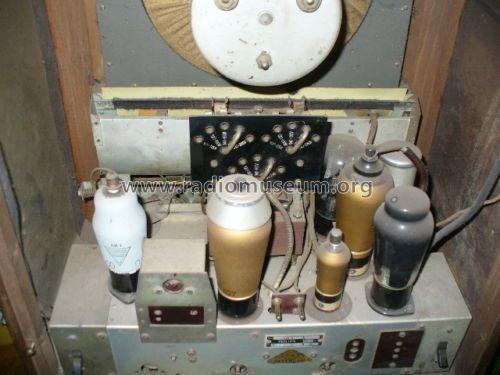

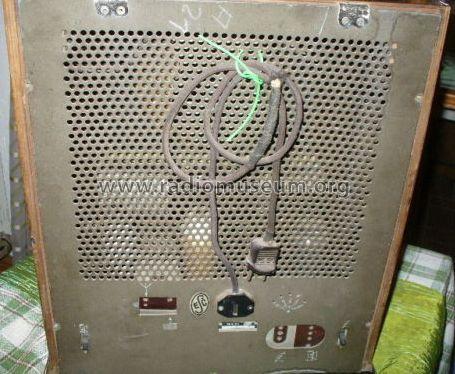

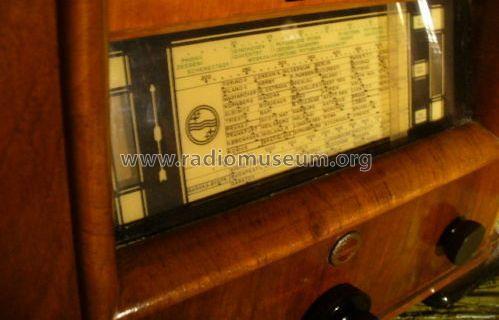

• Model: 546A - Philips Radios - Deutschland

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Other Models

• Here you find 2544 models, 2257 with images and 1566 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
