- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323315
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands

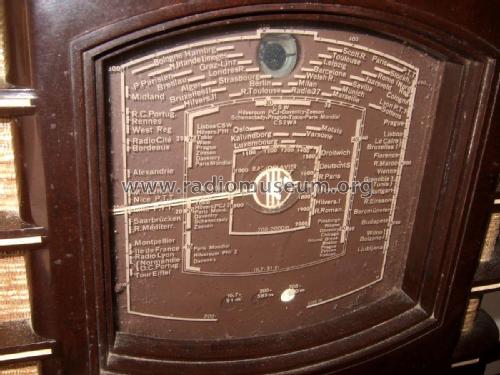

- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 555A - Philips; Eindhoven tubes
- Shape

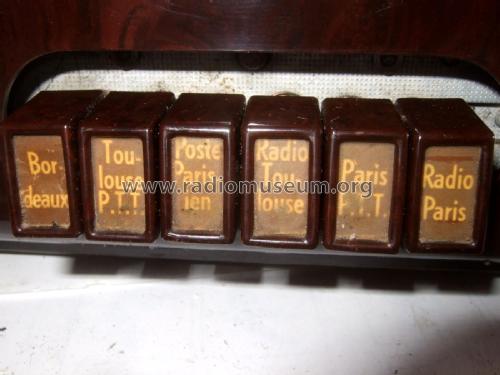

- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 485 x 295 x 220 mm / 19.1 x 11.6 x 8.7 inch
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
