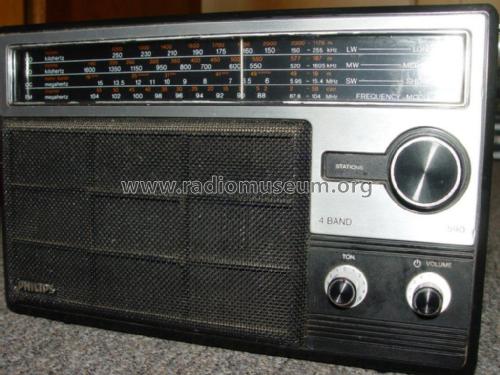

90AL590 /00 /15 /40 /51

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1980/1981

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84218

• • Brand: Deutsche Philips-Ges.

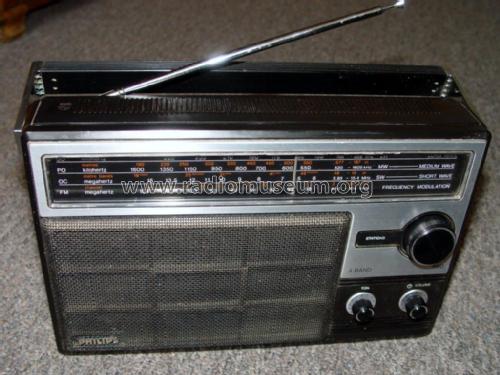

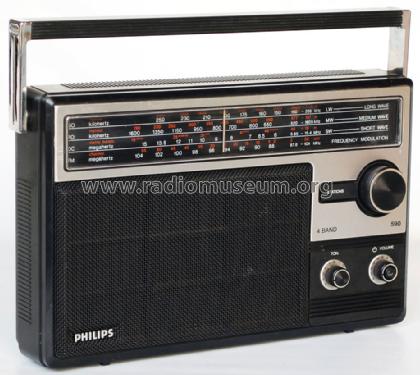

• Picture

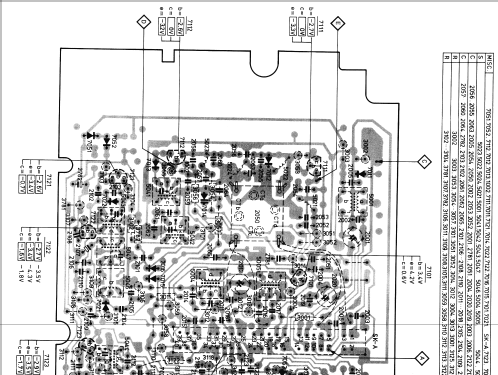

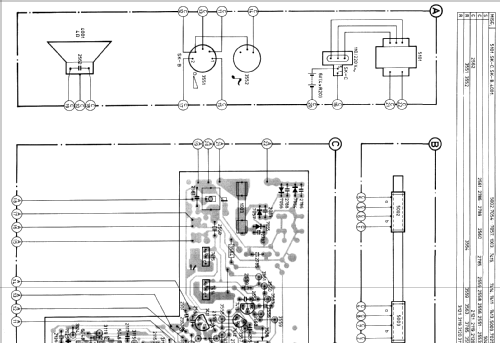

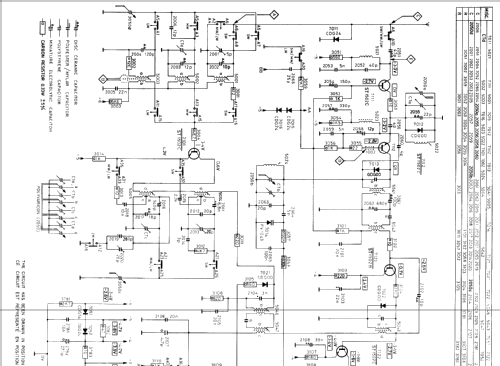

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220; (4 × 1,5) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90AL590 /00 /15 /40 /51 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 180 x 70 mm / 11.4 x 7.1 x 2.8 inch

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original prospect or advert (Philips Sound, Herbst/Winter '80, Philips Sound, Sommer '81)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
