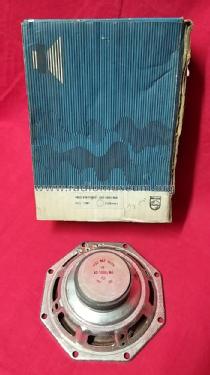

5 inch Octagonal Standard Loudspeaker AD5080 /M4 /M8 /M15 /M25
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1973
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 312331
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 5 inch Octagonal Standard Loudspeaker AD5080 /M4 /M8 /M15 /M25 - Philips; Eindhoven tubes
- Dimensions (WHD)
- 121 x 129 x 48 mm / 4.8 x 5.1 x 1.9 inch
- Notes
-
Philips 5 inch Octagonal Standard Loudspeaker type AD5080 /M
Available versions:
- /M4: Z= 4 Ω @ 130 Hz
- /M8: Z= 8 Ω @ 130 Hz
- /M15: Z= 15 Ω @ 130 Hz
- /M25: Z= 25 Ω @ 130 Hz
- Net weight (2.2 lb = 1 kg)
- 0.260 kg / 0 lb 9.2 oz (0.573 lb)
- Mentioned in
- -- Original-techn. papers. (Miniwatt Copresa "Altavoces" 1973)
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
