• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1932/1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26936

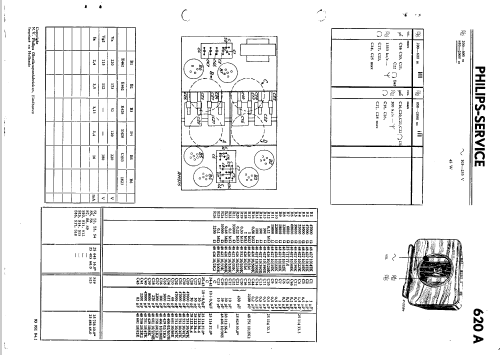

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• E462 E462 E428 E428 C453 1823

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 103-253 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super inductance 620A - Philips; Eindhoven tubes

• Price in first year of sale
• 199.00 FL

• Source of data
• Overzicht v.de toe te p PHILIPS

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• "Radio Schakelingen" (J.G.R. van Dijck)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
