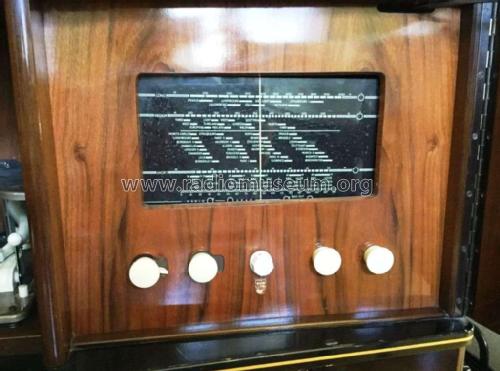

Radiogram 624A
Philips Electrical, Lamps, Industrial - Miniwatt; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Philips Electrical, Lamps, Industrial - Miniwatt; London
- Year
- 1953 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 144626
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiogram 624A - Philips Electrical, Lamps,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 35 x 35 x 17.5 inch / 889 x 889 x 445 mm
- Notes
-
Auto radiogram, with a 3 speed Philips AG1000 autochanger. Separate pick-up heads for 78rpm & microgroove records.
One EBC41 is used in the phonograph preamplifier.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Literature/Schematics (1)
- - - Manufacturers Literature (Service manual for the Philips Radiogram type 624A)
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
