- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1942–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96955

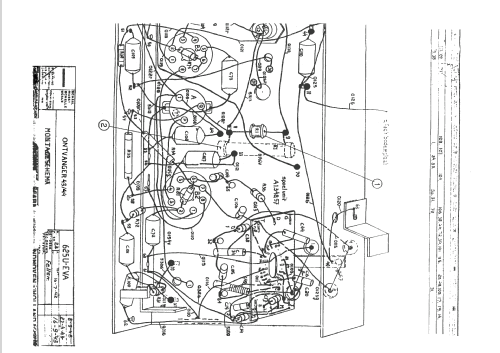

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 200; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 625U-EVA - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 330 x 240 mm / 19.7 x 13 x 9.4 inch
- Notes
-
Das Philips Modell 625U-EVA hat es nie als eigenständiges Modell gegeben. Die als 625U-EVA bezeichnete Schaltung war nur Basis für Verlagerungsgeräte (Beispiel: Ingelen 420GW). Diese Verlagerungsgeräte wurden sowohl in den Niederlanden (Eindhoven) wie auch in Belgien (Leuven) hergestellt.
Bitte, hier keine Bilder hochladen.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
