• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29514

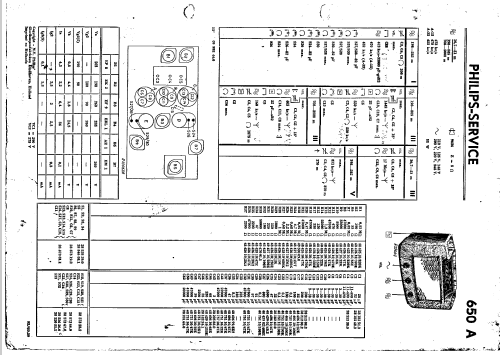

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF8 EK2 EF9 EBL1 EM1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

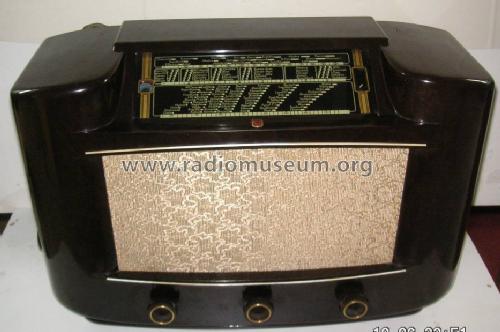

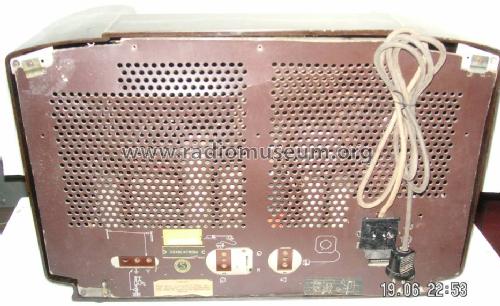

• Model: 650A -15 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 550 x 350 x 220 mm / 21.7 x 13.8 x 8.7 inch

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Price in first year of sale
• 128.00 hfl

• Source of data
• Overzicht v.de toe te p PHILIPS

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
