• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 282745

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF8 EK2 EF9 EBL1 EM1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 473 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

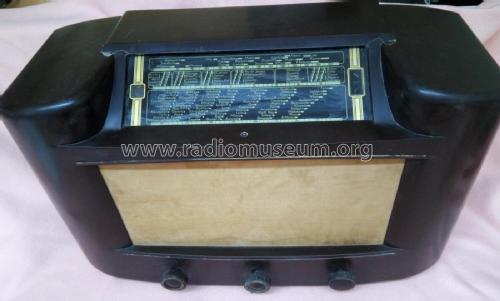

• Model: 650A - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 537 x 352 x 200 mm / 21.1 x 13.9 x 7.9 inch

• Notes

• See also Philips 650A- 15 (470 kHz), 650A- 32 (452 kHz) and 650A /34 (GB, 470 kHz).

  Chassis similar to Philips 652A but with different cabinet.
