• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7195

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF8 EK2 EF9 EBL1 EM1 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

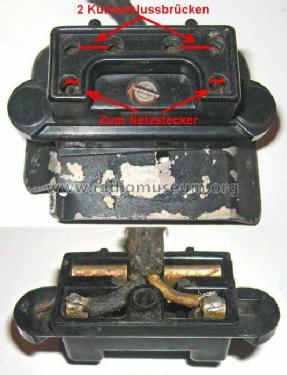

• Power type and voltage
• Alternating Current supply (AC) / 110; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 650A -32 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 537 x 352 x 200 mm / 21.1 x 13.9 x 7.9 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

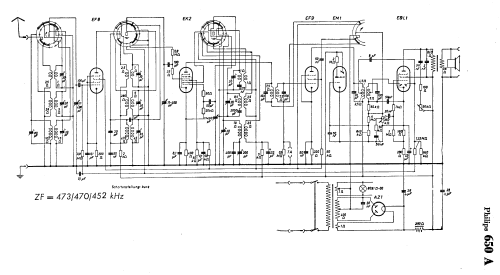

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
