- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 282738
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 473 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 652A -28 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 520 x 345 x 220 mm / 20.5 x 13.6 x 8.7 inch
- Notes
-

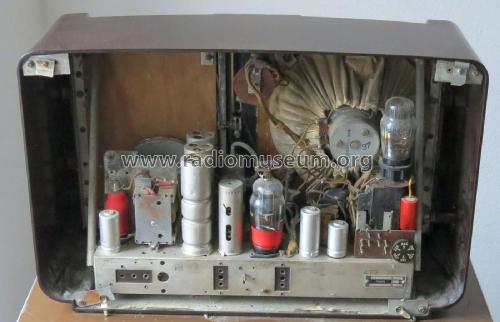

Chassis similar to Philips 650A but with different cabinet.
- Author
- Model page created by Ottmar Lauth. See "Data change" for further contributors.
