• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 304640

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

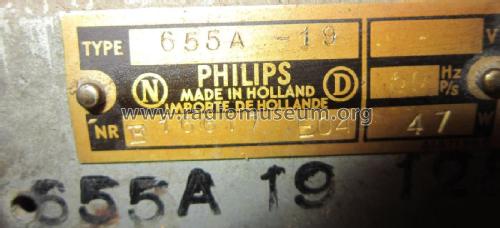

• Model: 655A-19 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 330 x 250 mm / 19.3 x 13 x 9.8 inch

• Notes

• Eingangsbandfilter für MW und LW. Für KW 6 Kreise.

• Net weight (2.2 lb = 1 kg)
• 9.3 kg / 20 lb 7.8 oz (20.485 lb)

• Author
• Model page created by Martin Steyer. See "Data change" for further contributors.
