• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 242326

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EK2 EF5 EBC3 EBL1 EM1 AZ1

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

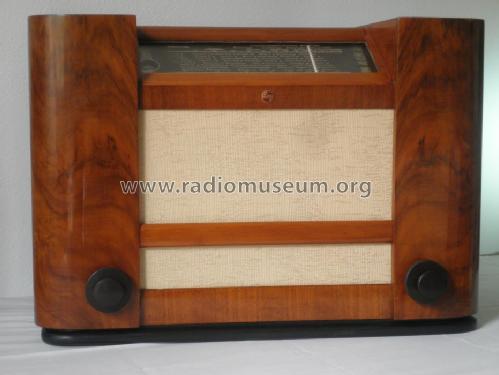

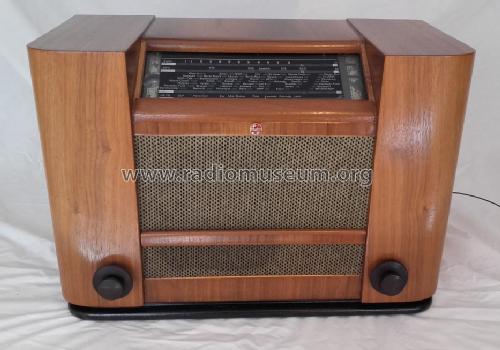

• Model: 667A - Philips Belgium Belgien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 495 x 330 x 262 mm / 19.5 x 13 x 10.3 inch

• Notes

• Weitere Service-Unterlagen befinden sich beim Modell Philips-Holland-667A.

  Für den Betrieb im Gleichstromnetz kann der Wechselrichter 7881C eingebaut werden.

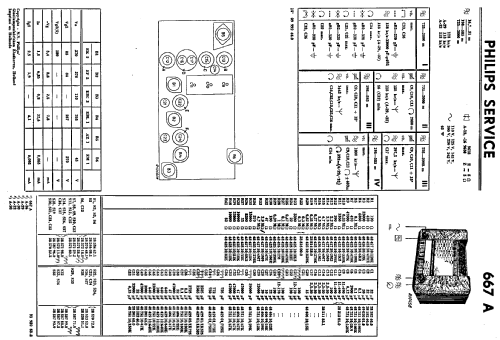

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
