• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29527

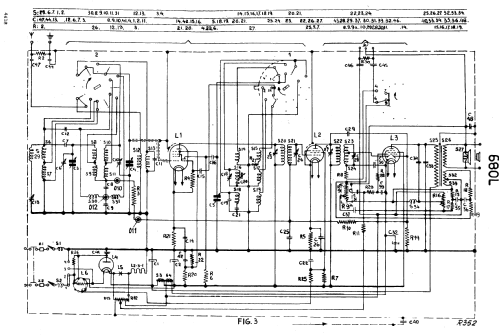

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EF9 CBL1 CY1 C1 or C9

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110-130; 200-225 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 680L, 680L -20 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 350 x 255 mm / 19.3 x 13.8 x 10 inch

• Notes
• • 9 push buttons: 3 for wave band choice; 6 for preselections.
  • Iron in hydrogen atmosphere current regulator (no Urdox)
    • type C1 for mains voltage 200 - 225 V.
    • type C9 for mains voltage 110 - 130 V.

  A model 680L-20 with a different cabinet also exists: no further information.

• Price in first year of sale
• 131.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
